G系列1.0-3.5噸電動堆高機(鉛酸)

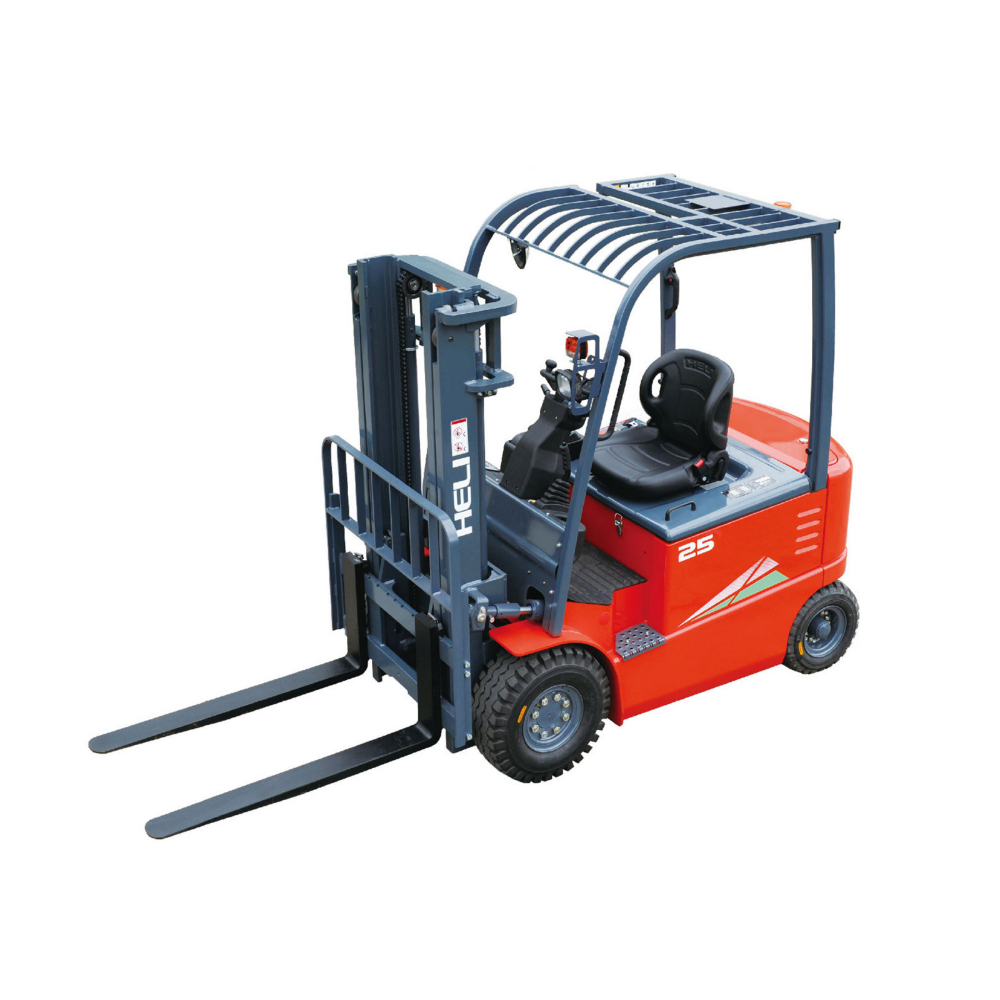

商品圖像
-
商品資訊

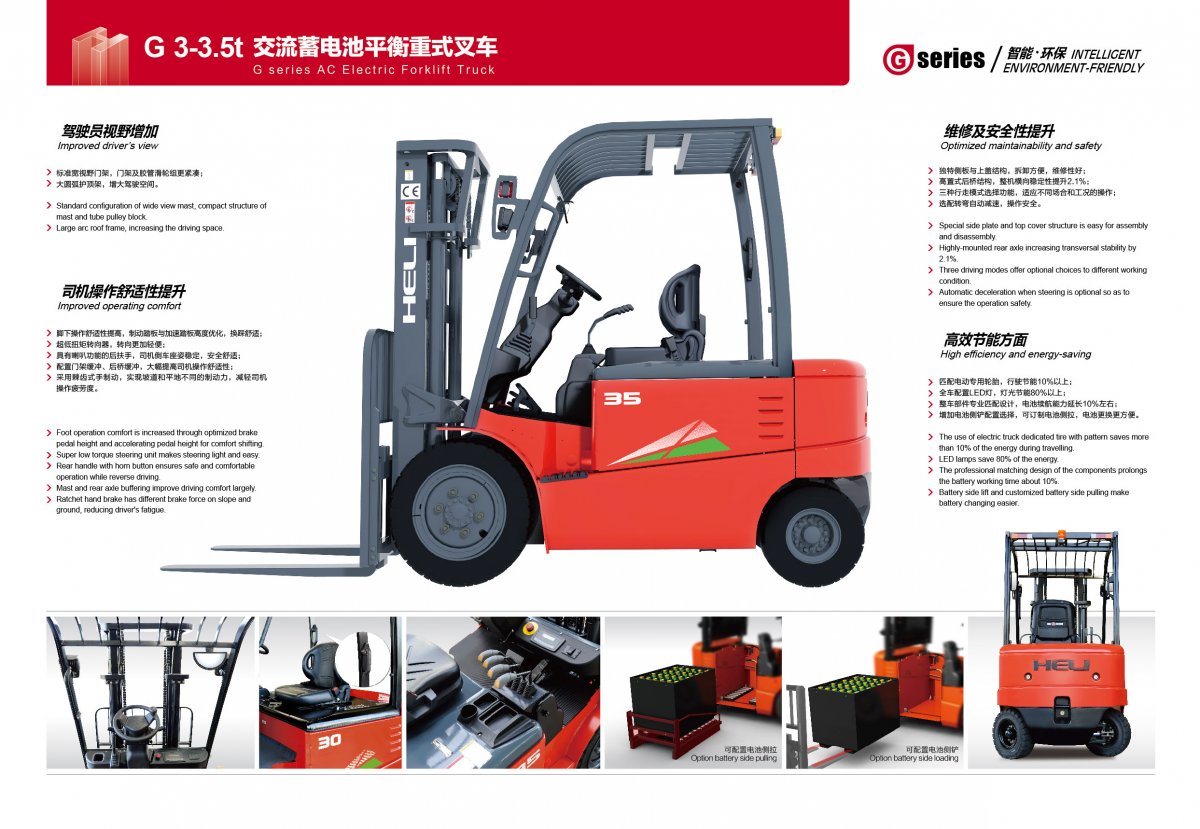

駕駛員視野增加 Improved driver’s view
標準寬視野門架，門架及膠管滑輪組更緊湊。大圓弧護頂架，增大駕駛空間。
Standard configuration of wide view mast, compact structure ofmast and tube pulley block. Large arc roof frame, increasing the driving space.
司機操作舒適性提升 Improved operating comfort
腳下操作舒適性提高，制動踏板與加速踏板高度優化，換踩舒適。超低扭矩轉向器，轉向更加輕便。具有喇叭功能的後扶手，司機倒車座姿穩定，安全舒適。配置門架緩衝、後橋緩衝，大幅提高司機操作舒適性。採用棘齒式手製動，實現坡道和平地不同的製動力，減輕司機操作疲勞度。
Foot operation comfort is increased through optimized brakepedal height and accelerating pedal height for comfort shifting. Super low torque steering unit makes steering light and easy. Rear handle with horn button ensures safe and comfortableoperation while reverse driving. Mast and rear axle buffering improve driving comfort largely. Ratchet hand brake has different brake force on slope andground, reducing driver’s fatigue.
維修及安全性提升 Optimized maintainability and safety
獨特側板與上蓋結構，拆卸方便，維修性好。高置式後橋結構，整機橫向穩定性提升2.1%。三種行走模式選擇功能，適應不同場合和工況的操作。選配轉彎自動減速，操作安全。
Special side plate and top cover structure is easy for assemblyand disassembly. Highly-mounted rear axle increasing transversal stability by2.1%. Three driving modes offer optional choices to different workingcondition. Automatic deceleration when steering is optional so as toensure the operation safety.
高效節能方面 High efficiency and energy-saving
匹配電動專用輪胎，行駛節能10%以上。全車配置LED燈，燈光節能80%以上。整車部件專業匹配設計，電池續航能力延長10%左右。增加電池側鏟配置選擇，可訂製電池側拉，電池更換更方便。
The use of electric truck dedicated tire with pattern saves morethan 10% of the energy during travelling. LED lamps save 80% of the energy. The professional matching design of the components prolongsthe battery working time about 10%. Battery side lift and customized battery side pulling makebattery changing easier.
-
